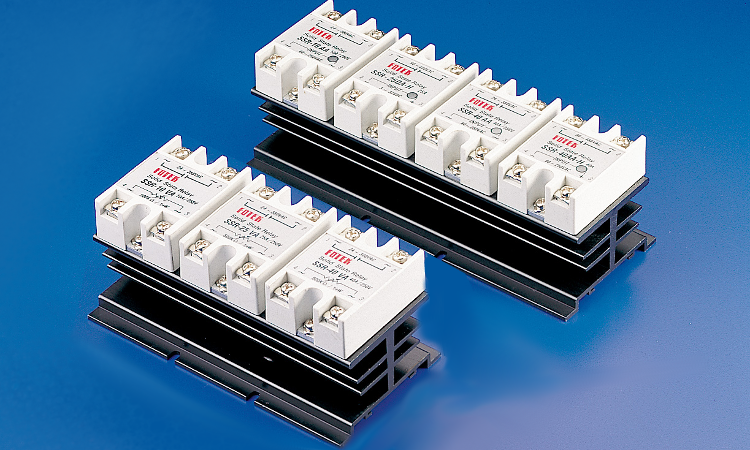

FOTEK台湾阳明固态继电器SSR-VA系列单相固态继电器标准型型号有:SSR-10VA/SSR-25VA/SSR-40VA/SSR-50VA/SSR-75VA;高压型型号有:SSR-10VA-H/SSR-25VA-H/SSR-40VA-H/SSR-50VA-H/SSR-75VA-H
陽明電機股份有限公司SSR-VA系列单项固态继电器产品说明:
1.高電介強度超過4KV 2.高絕緣強度超過100MΩ/500VDC 3.附過熱保護回路可防止過熱破壞 4.耐瞬間電流超過額定電流10倍以上 5.附雙重突波吸收回路有效防止突波破壞 6.符合EN60947-4-3 和 EN60950標準
General specification / 共同規格
| Input voltage | 輸入電壓 | Variable resistor | |||||||||||||||||
| Input resistance | 輸入阻值 | 250KΩ/110VAC；500KΩ/220VAC；1MΩ/380VAC；1MΩ/480VAC | |||||||||||||||||
| Wattage of VR | VR功率 | 1/4 W min. | |||||||||||||||||
| Control method | 控制方式 | Phase control | |||||||||||||||||
| Leakage current | 洩漏電流 | 5.0 mA max. | |||||||||||||||||
| Response time | 反應時間 | 1.0ms max. | |||||||||||||||||
| Input immunity | 輸入耐突波 | 2 KV（EN61000-4-4） | |||||||||||||||||
| Isolation strength | 電介強度 | 4 KVrms（EN60950/VDE0805） | |||||||||||||||||
| Insulation strength | 絕緣強度 | 100MΩ / 500VDC（EN60950/VDE0805） | |||||||||||||||||
| Circumstance | 工作環境 | -40℃ ~ +80℃；35 ~ 85％RH | |||||||||||||||||
■ Notice of use / 使用注意事項
| 1＞ To protect the solid state module against a short-circuit of the load, please use a fuse with a I2t value ＜ 1/2 I2t | |||||||||||||||||
| value specified. | |||||||||||||||||
| 請加裝快速保險絲（I2t value 小於額定值的一半），以防止因負載短路而造成固態模組燒毀。 | |||||||||||||||||
| 2＞ The thermal conductive silicone rubber or thermal grease is required When the solid state module is mounted on a heat sink | |||||||||||||||||
| 本固態模組加裝散熱器時務必墊高導熱系數的矽膠片或散熱膏【導熱系數（K）＞4.5】。 | |||||||||||||||||
| 3＞ The rated current is corresponding to a resistive load, if the solid state module is applied in other loads, Please consider the inrush current at turn on and the surge voltage at turn off. | |||||||||||||||||
| 本固態模組所標示的額定電流是以電阻性負載為準，如果使用在其他負載上須考慮起動電流及關機突波。 | |||||||||||||||||
| ＊ Electric discharge lamps: Those loads have the「inrush current」at turn on and the「surge voltage」at turn off, please use「high voltage type」on 220VAC mains. | |||||||||||||||||
| 電子起動式燈具（如日光燈）：須考慮起動電流及關機突波，220VAC電源系統請選用「高壓型」。 | |||||||||||||||||
| ＊ Incandescent lamp: The rated current of the module must be over 4 times of the incandescent lamp current. | |||||||||||||||||
| 炙熱燈泡（如IR燈管）： 須考慮起動電流，固態模組的額定電流須大於炙熱燈泡電流的「四倍」。 | |||||||||||||||||
| ＊ Three phase motors: The rated current of the s module must be over 4 times of the three phase motor average | |||||||||||||||||
| current . | |||||||||||||||||
| 三相馬達：須考慮起動電流，固態模組的額定電流須大於三相馬達平均電流的「四倍」。 | |||||||||||||||||
| ＊ Transformer loads: The rated current of the module must be over 10 times of the transformer current. | |||||||||||||||||
| 變壓器負載：須考慮反電動電流，固態模組的額定電流須大於變壓負載電流的「十倍」。 | |||||||||||||||||
| ＊ Capacitor loads, the rated current of the module must be over 3 times of the capacitor current . | |||||||||||||||||
| 電容性負載：須考慮充電瞬間電流，固態模組的額定電流須大於電容性負載電流的「三倍」。 |
■ Specification【Rated current corresponding to Resistive load】
| Type 型式 | Standard type / 標準型 | |||||
| Model 型號 | SSR – 10VA | SSR – 25VA | SSR – 40VA | SSR – 50VA | SSR – 75VA | |
| Rated current 額定電流 | 10A max. | 25A max. | 40A max | 50A max. | 75A max | |
| I2t for fuse 熔斷電流 | 144A2S | 259A2S | 664A2S | 518A2S | 1328A2S | |
| Surge current 耐突波電流 | 135A | 275A | 410A | 550A | 820A | |
| Peak voltage耐突波電壓 | 1200VAC min. | |||||
| Output voltage 輸出電壓 | 24 ~ 380VAC | |||||
| Type 型式 | High voltage type / 高壓型 | |||||
| Model 型號 | SSR-10VA - H | SSR-25VA - H | SSR-40VA - H | SSR – 50VA-H | SSR – 75VA-H | |
| Rated current 額定電流 | 10A max. | 25A max. | 40A max | 50A max. | 75A max | |
| for fuse 熔斷電流 | 144A2S | 259A2S | 664A2S | 518A2S | 1328A2S | |
| Surgecurrent 耐突波電流 | 135A | 275A | 410A | 550A | 820A | |
| Peak voltage 耐突波電壓 | 1200VAC min. | |||||
| Outputvoltage 输出電壓 | 90 ~ 480VAC | |||||
